High-performance pre-painted galvanized and galvalume steel coils. Full RAL color range with durable PE & PVDF coatings for demanding structural and architectural applications.

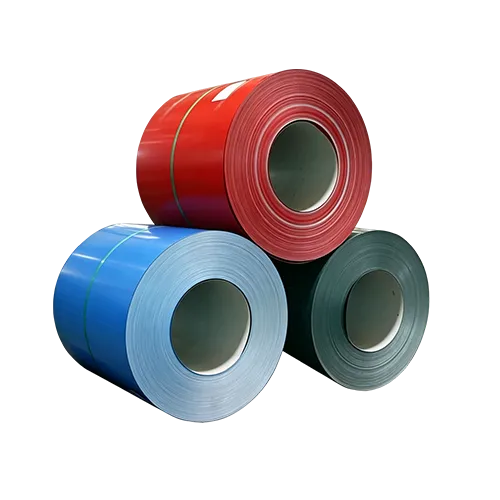

PPGI (Pre-Painted Galvanized) and PPGL (Pre-Painted Galvalume) steel coils are manufactured by applying multiple layers of organic coatings onto zinc or aluminum-zinc coated steel substrates. This continuous coil coating process results in a product that perfectly balances the structural strength of steel with exceptional corrosion resistance and a durable, aesthetically pleasing finish.
Whether you require standard color-coated steel coils for roofing and cladding or highly durable prepainted galvalume steel for harsh industrial environments, Luyuan Steel delivers consistent quality. Every coil is produced to precise specifications and backed by full English Mill Test Certificates.
PPGI steel coil offers durable protection, uniform finish, and flexible use for construction and fabrication.
PPGL coil offers durable, color-coated protection for roofing and cladding.
| Parameter | Specification |
| Product Name | PPGI (Prepainted Galvanized Steel) & PPGL (Prepainted Galvalume Steel) |
| Base Metal | PPGI: Hot-dip galvanized steel (GI)
PPGL: Galvalume steel (GL – 55% Aluminum-Zinc) |
| Coating Weight | PPGI: Zinc Coating Z60 – Z275 (g/m²)
PPGL: Alu-Zinc Coating AZ30 – AZ150 (g/m²) |
| Thickness | 0.12 mm – 1.20 mm |
| Width | 600 mm – 1,250 mm |
| Top Coat Thickness | 15 – 25 μm (PE) / 25 – 35 μm (PVDF) |
| Back Coat Thickness | 5 – 10 μm |
| Coating Type | PE (Polyester) / PVDF / SMP / HDP |
| Color | Full RAL color chart & Custom color matching |
| Surface Finish | Smooth / Matte / Embossed / Printed |
| Standard | ASTM A755 / EN 10169 / JIS G3312 / GB/T 12754 |

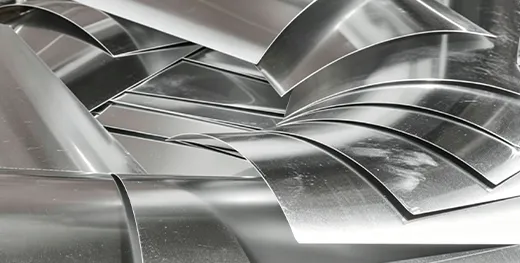

We source our galvanized and galvalume substrates from top-tier mills to ensure maximum structural integrity. This guarantees that our PPGI and PPGL coils deliver reliable load-bearing capacity and long-term durability.

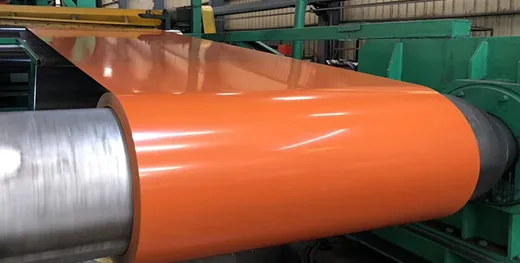

Our state-of-the-art coating lines utilize precision temperature control and automated thickness monitoring. This ensures uniform paint adhesion, consistent color matching across batches, and a flawless surface finish.

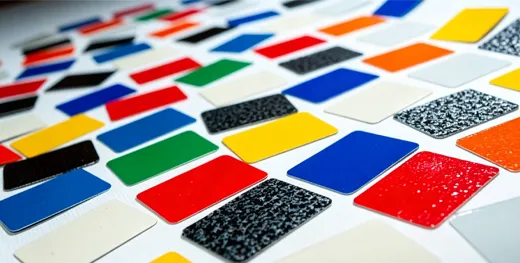

We offer the complete RAL color spectrum as standard. For brand-specific or specialized architectural requirements, our technical team provides precise custom color matching, along with customizable gloss levels and surface textures.

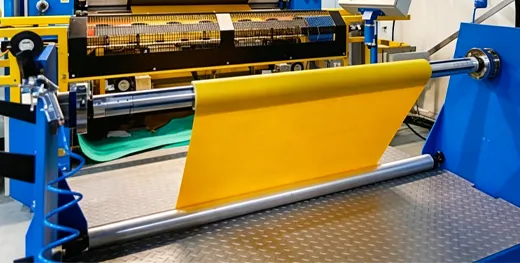

Choose from standard PE (Polyester) coatings for general building applications, or upgrade to premium PVDF coatings for exceptional UV resistance and color retention in coastal, tropical, or high-humidity environments.

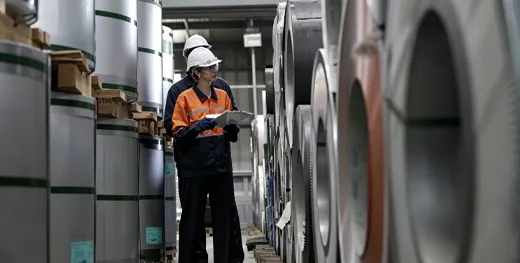

Every steel coil undergoes rigorous pre-shipment inspection. We provide full English Mill Test Certificates (MTC) with every order, ensuring complete traceability and compliance with international standards like ASTM and EN.

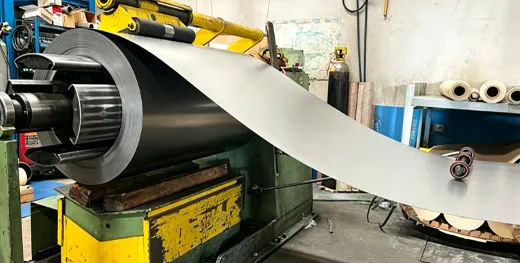

Beyond standard coils, we offer comprehensive OEM services including slitting, cutting to length, and protective film application, streamlining your supply chain and reducing your processing costs.

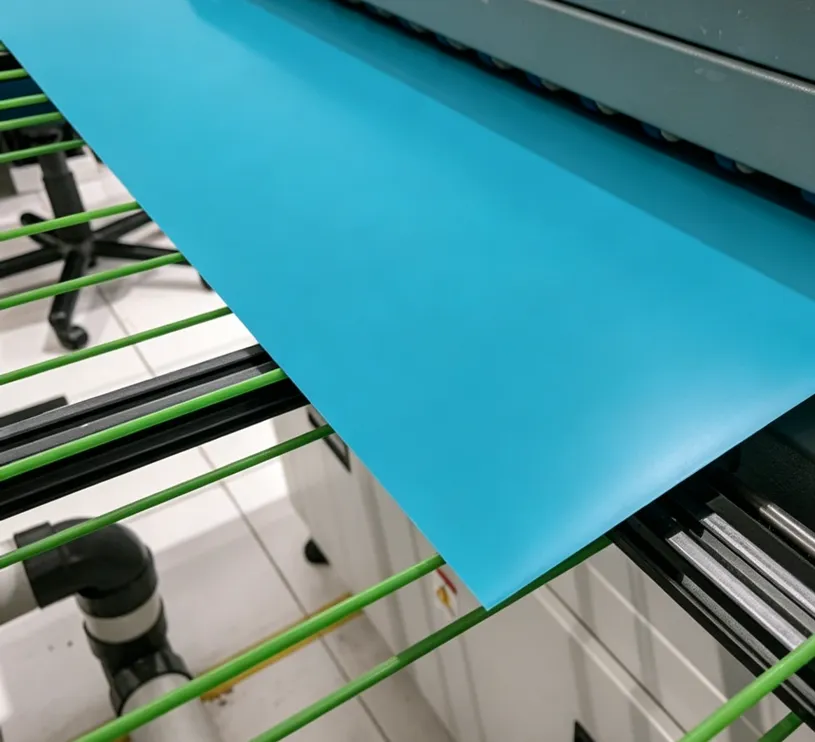

Every project has unique requirements. We offer full customization across all PPGI and PPGL parameters:
| Thickness & Width | Any dimension within our production range |
| Color | Custom RAL matching or brand-specific color codes |
| Coating Type | PE / PVDF / SMP / HDP |
| Surface Texture | Smooth / Embossed / Orange peel / Matte |
| Steel Grade | Standard or high-strength structural grades |
| Base Metal | GI (galvanized) or GL (Galvalume / aluminum-zinc) |
The primary difference lies in the base metal. PPGI uses a hot-dip galvanized (zinc-coated) steel substrate, offering excellent basic corrosion protection. PPGL uses a galvalume substrate (coated with 55% aluminum, 43.4% zinc, and 1.6% silicon), which provides superior heat reflectivity and significantly higher corrosion resistance, especially in harsh or coastal environments.
PE (Polyester) is the most common and cost-effective coating, ideal for standard roofing and cladding in moderate climates. PVDF (Polyvinylidene Fluoride) is a premium coating that offers exceptional resistance to UV radiation, chalking, and chemical exposure. PVDF is highly recommended for projects in tropical, coastal, or heavy industrial areas where long-term color retention is critical.
Yes. While we offer the full standard RAL color chart, we can also perform custom color matching based on physical samples or specific brand color codes provided by the client. We ensure high color consistency across different production batches.
