Explore Our Cold Rolled Steel Series

Cold rolled steel is manufactured by further processing hot rolled steel at room temperature. This additional step drastically improves the steel’s physical properties, resulting in closer dimensional tolerances, superior surface finish, and increased yield strength. It is the essential raw material for applications where precision, aesthetics, and excellent formability are non-negotiable.

At Luyuan Steel, we produce and supply premium cold rolled products—including coils (CRC), flat sheets, and cold-drawn rods. Whether you need deep-drawing grades (DC04/SPCE) for automotive stamping or commercial quality (SPCC/DC01) for home appliances, we deliver steel that meets your exact manufacturing standards.

CR Coil

Full hard cold rolled steel coil with 0.12–5.0 mm thickness, non-oiled surface, 508/610 mm coil ID, and processing support for cutting, bending, punching, annealing, and decoiling.

Inquiry Now

View Details

CR Rod

Cold rolled alloy steel rod/bar with 1.2436, D7, SKD2, and X210CrW12 grade options, ±1% tolerance, mold steel use, and processing support for bending, welding, cutting, punching, and decoiling.

Inquiry Now

View Details

CR Sheet

Soft cold rolled steel sheet with 0.2–0.5 mm thickness, DOS oiled surface treatment, 508/610 mm coil ID options, and processing support for cutting, bending, annealing, black annealing, and decoiling.

Inquiry Now

View Details

Cold Rolled Steel — Technical Specifications

Parameter	Specification
Product Types	CR Coil (CRC) / CR Sheet / CR Rod (Cold Drawn Bar)
Technique	Cold Rolled / Cold Drawn
Thickness (Coil & Sheet)	0.12 mm – 5.0 mm
Width (Coil & Sheet)	600 mm – 1,500 mm
Diameter (Rod)	5 mm – 100 mm
Length (Sheet & Rod)	Customized according to client requirements
Commercial / Drawing Grades	SPCC, SPCD, SPCE, DC01, DC03, DC04
Structural / General Grades	ST12, Q195, Q235
Hardness / Temper	Soft (Annealed) / 1/8H / 1/4H / 1/2H / Full Hard (FH)
Surface Finish	Bright / Matte / Annealed / Black Annealed / Oiled
Standard	ASTM A1008 / EN 10130 / JIS G3141 / GB/T 5213

Why Source Cold Rolled Steel from Luyuan?

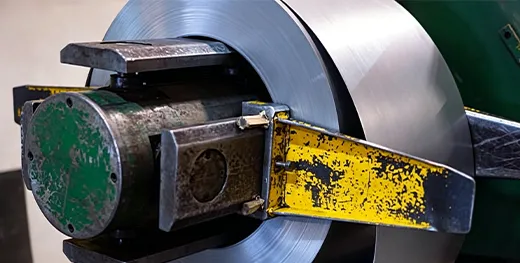

Exceptional Dimensional Accuracy

Our cold rolling process ensures extremely tight tolerances on thickness (down to ±0.01mm) and width. This precision guarantees consistent performance in your automated stamping, roll-forming, and CNC machining lines.
Pristine Surface Finishes

Cold rolled steel is prized for its aesthetic appeal. We offer various surface finishes, from standard matte to ultra-bright, providing the perfect defect-free canvas for electroplating, enameling, or high-gloss painting.

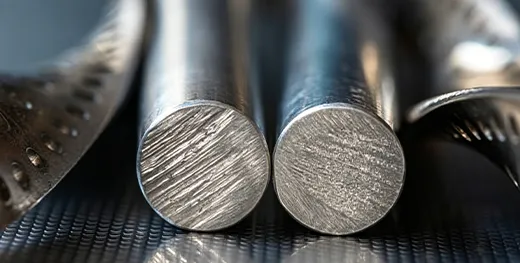

Superior Formability & Deep Drawing

We supply specialized drawing and deep-drawing grades (such as DC04 and SPCE). These materials possess excellent ductility and elongation properties, allowing them to be pressed into complex shapes without cracking or tearing.

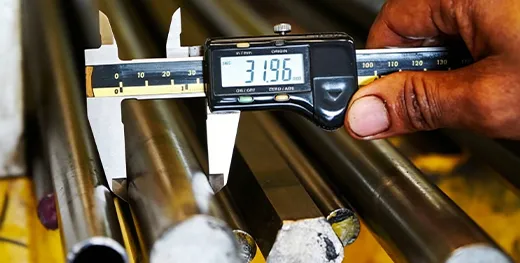

Customizable Hardness (Temper)

Depending on your fabrication needs, we can supply cold rolled steel in various tempers. Choose fully annealed (soft) steel for maximum bendability, or Full Hard (FH) steel for applications requiring high rigidity and structural strength.
Advanced Annealing Technology

Our state-of-the-art bell-type and continuous annealing furnaces ensure uniform mechanical properties throughout the entire coil. We offer both bright annealing and black annealing services to meet specific industrial requirements.

Custom Processing — Tailored for Your Production

Maximize your manufacturing efficiency by utilizing our in-house processing services for cold rolled steel:

Precision Slitting	Slitting master CR coils into narrow strips with burr-free edges
Cut-to-Length	Shearing coils into flat sheets with guaranteed diagonal accuracy and flatness

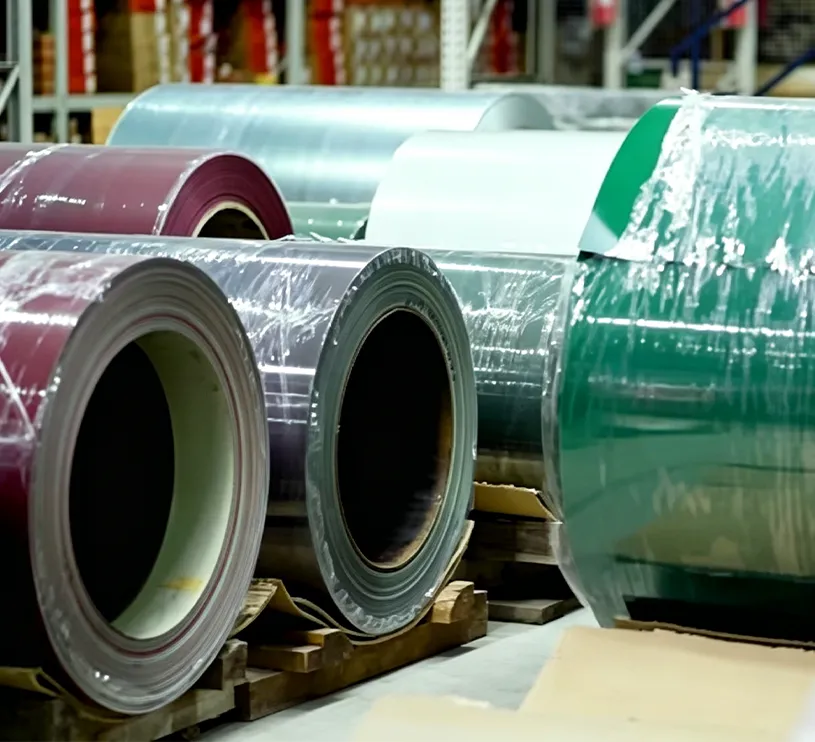

Surface Protection	Application of protective PVC/PE films to prevent scratches during transport and handling
Rod Processing	Precision cutting, chamfering, and polishing of cold drawn rods
Oiling	DOS oiling or dry finish options depending on your subsequent painting or welding processes

Tell us your specific grade, temper, and dimensions, and we will deliver production-ready materials.

Send Your Specifications

Applications of PPGI & PPGL Steel

Frequently Asked Questions

What is the difference between SPCC, SPCD, and SPCE?

These are Japanese (JIS) standards for cold rolled steel. SPCC is Commercial Quality, suitable for simple bending and forming. SPCD is Drawing Quality, offering better ductility for moderate stamping. SPCE is Deep Drawing Quality, featuring the highest elongation, making it ideal for complex, deep-drawn parts like automotive fenders or sinks.
Why is cold rolled steel more expensive than hot rolled steel?

Cold rolled steel undergoes additional processing steps after hot rolling, including pickling, cold reduction (rolling at room temperature), and annealing. These steps require more energy and time, but they result in a product with significantly better surface quality, tighter tolerances, and higher strength.
What does "Full Hard" (FH) mean?

Full Hard refers to cold rolled steel that has not been annealed after the cold reduction process. It is highly rigid, has high tensile strength, and resists bending. It is typically used for structural components or as the base material for galvanizing lines (where it will be annealed during the hot-dip process).
